Print Design

File> Print Design

Print Design function is another unique function in Galaincha software. You can print the current design with additional information like design name, colors, textures, pile heights, own logo, carpet size, custom texts and disclaimer. It saves the design plate in pdf format.

There are different options of the design plate template layout,

• Default Portrait : This template will have the color information at the bottom. It is suitable for showing design with less number of colors

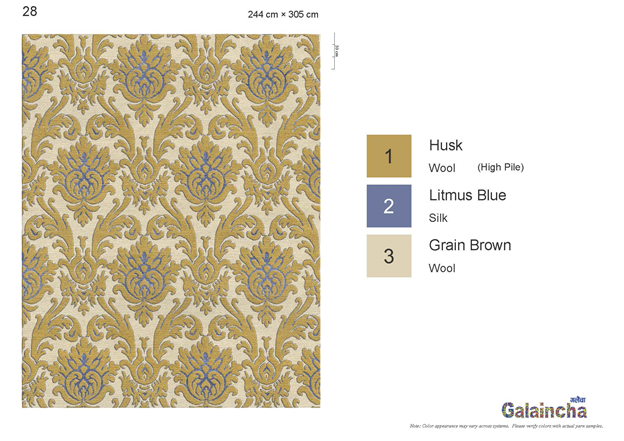

• Default Landscape : This template will have the color information at right side. It is suitable for showing design with many number of colors

• Default A3 size : This template is suitable to print Design plate in A3 sheet which will show large size design

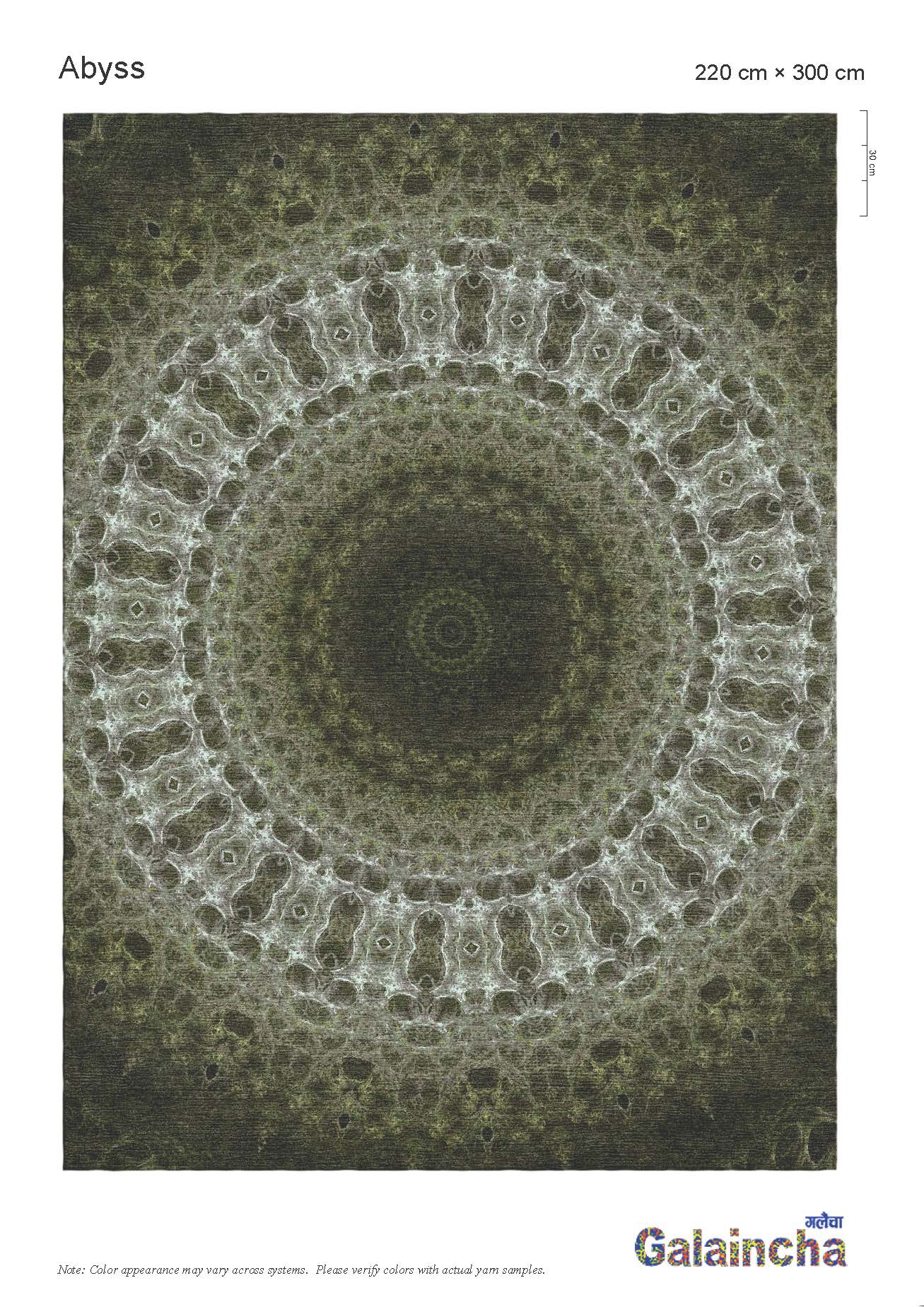

• Design Only : This template is to print design without color and texture information.

• Colors Only : This template is suitable to print color information of more than 30 colored design. You can print Design Only and Color Only separately to have all the information.

Design Plate printing has different option of showing design.

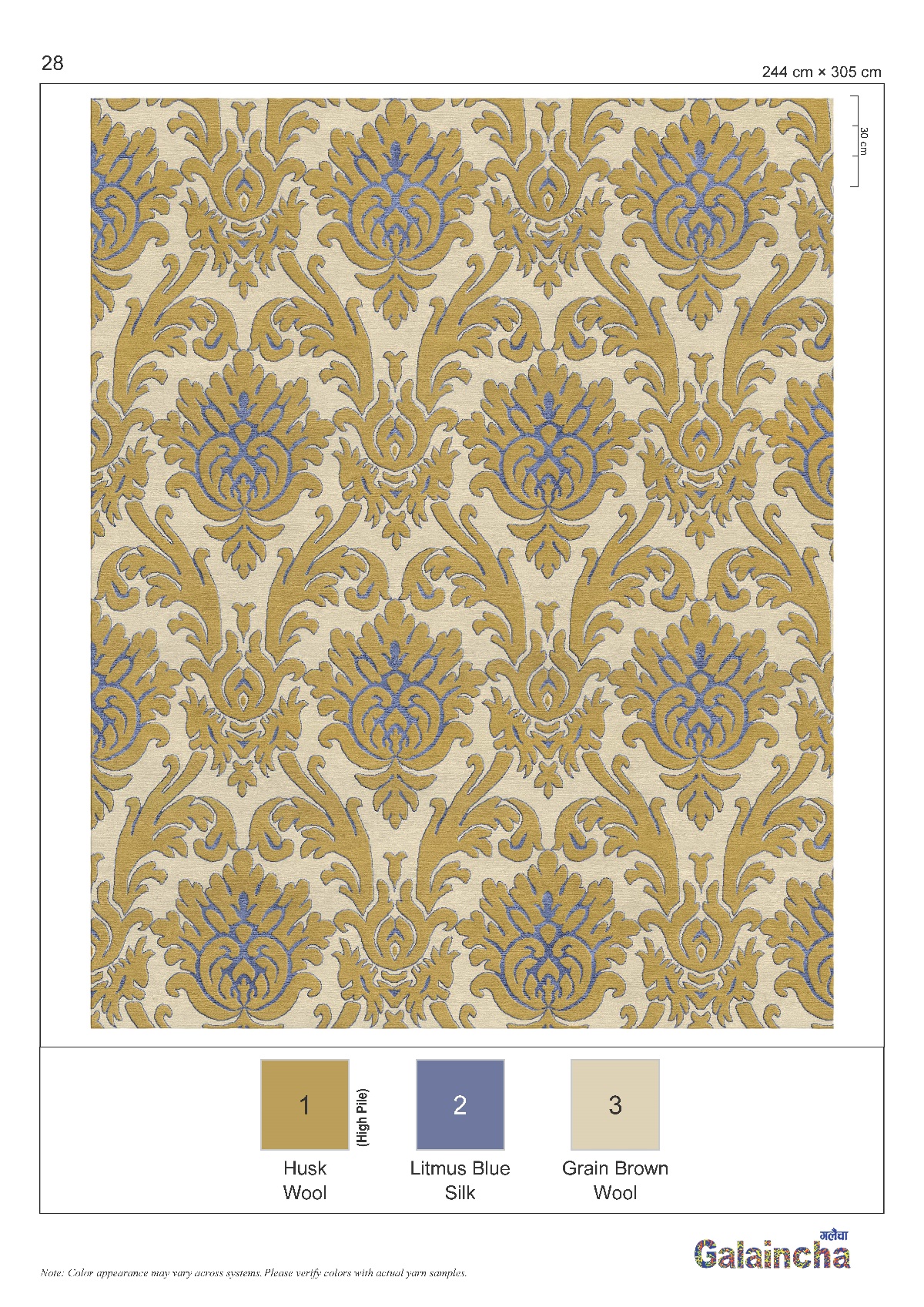

• Rendering: Show design with texture simulation

• Plain Design: Show plain design without simulation

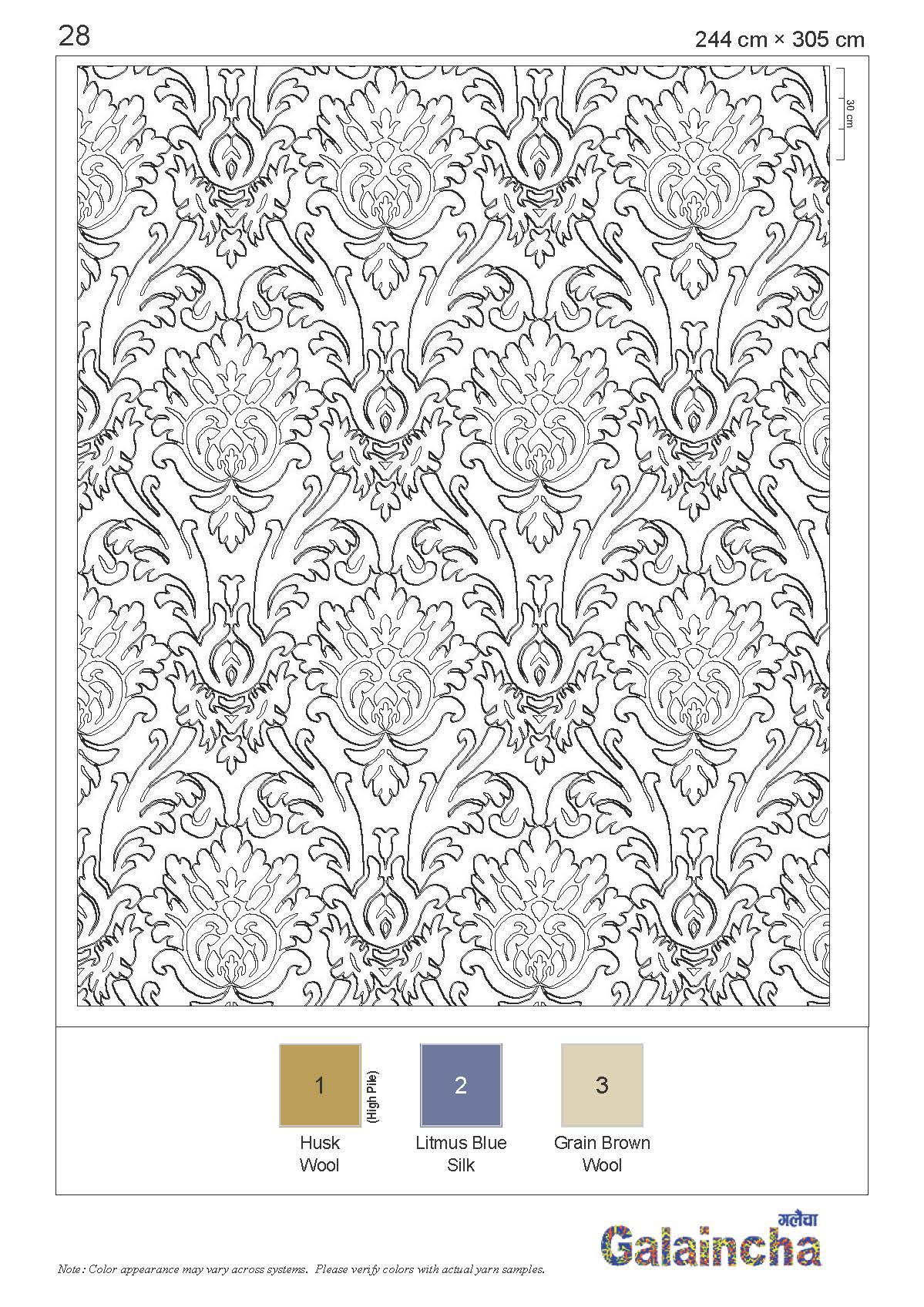

• Outline: Show design outline only

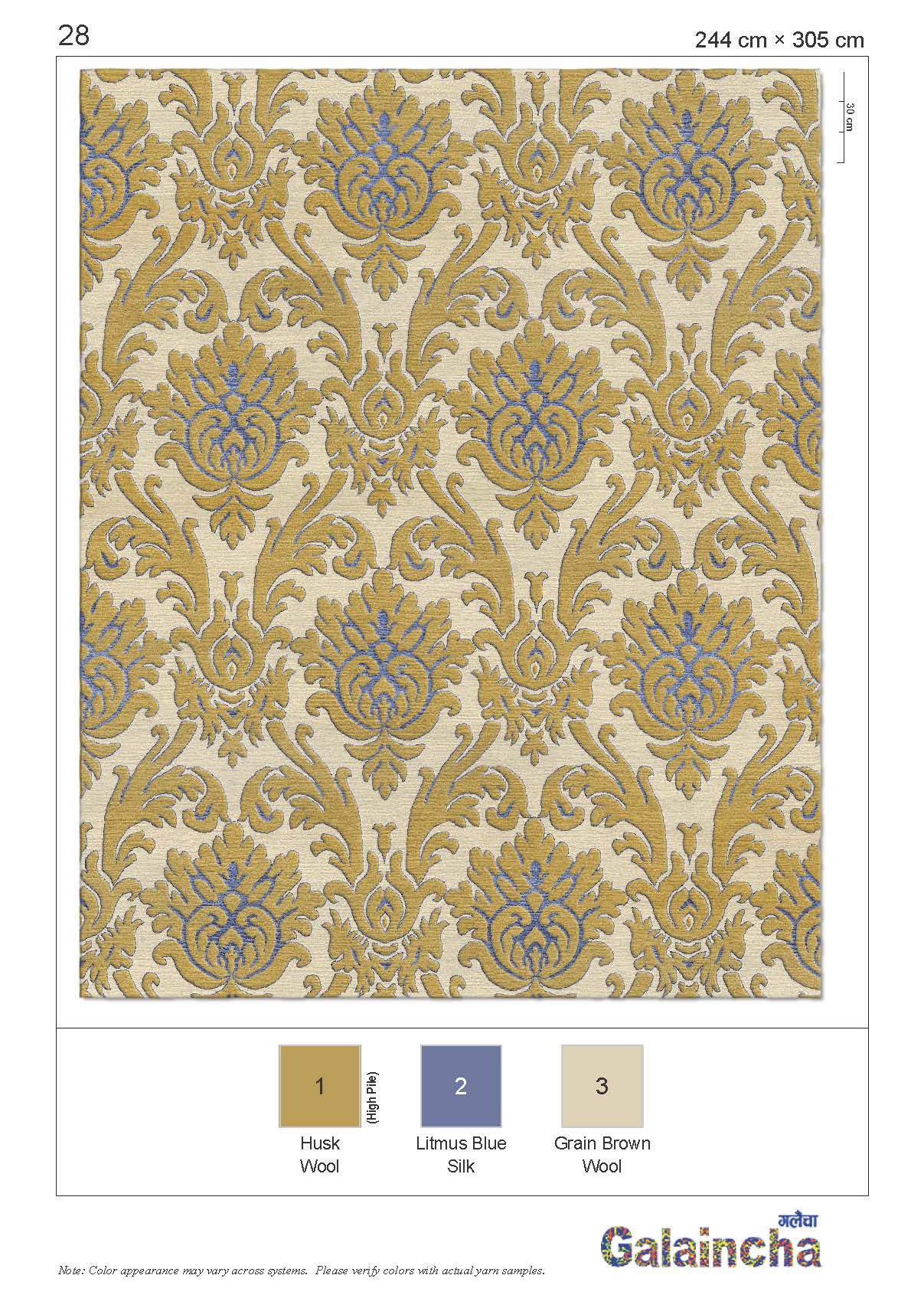

• Drop Shadow: Add shadow around the design rendering

You can save the design in PDF format by clicking Save button.
You can Print the design Plate directly to your default printer.
Click Close button (shortcut ESC) to close the window

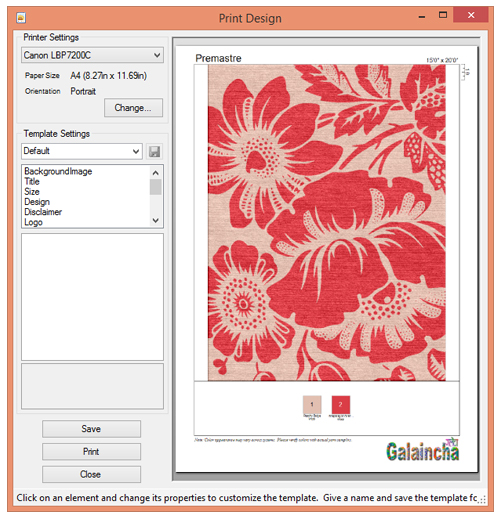

Manual Mode:

Printer setting:
You can change the printer, paper size, paper source and paper orientation from the setting by clicking Change button.

Template Setting:
You can select any available templates from the drop-down option.

Default: The default template
       Design only: If you need only design information (without color, texture & pile information)
       Colors only: If you have many colors, then print the color, texture and pile information in a separate page.

You can change the layout of default template according to your requirement. You can change the settings of,
Background Image: Border color, layout area, size, visibility, color, Display, Effect, own image and system images.
Title: Border color, layout, size, visibility, Font, Font size, Font align (horizontal/Vertical), Name, Font color.
Size: Border color, layout, size, visibility, Font, Font size, Font align (horizontal/Vertical), Name, Font color.
Design: Border color, layout area, size, visibility, color, Display, Effect, own image and system images.
Disclaimer: Border color, layout, size, visibility, Font, Font size, Font align (horizontal/Vertical), Name, Font color.
Logo: Border color, layout area, size, visibility, color, Display, Effect, own logo and system logo.
Colors: Border color, layout, size, visibility, background, Box size, Color box align (horizontal/Vertical), Color number, Box gap, Show percentage, Font size.

You can change the template setting and save to load as your own default template.

If you want to place your company's logo in design plate instead of Galaincha, then visit Work flow in Galaincha http://galaincha.com.np/workflow/workflow/workflow.php?p59g28=saus65csso83t20

Printing design: Designs with a lot of colors https://alternativetechnology.zendesk.com/hc/en-us/articles/206911403-Printing-Design-Designs-with-a-lot-of-colors
